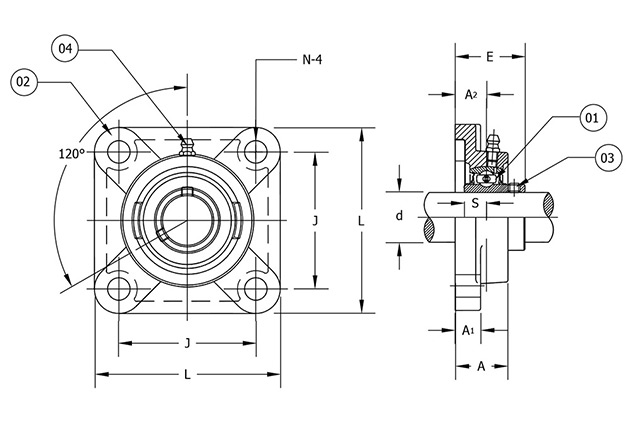

DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		-	+		-	+
d	0.875	0	0.0007	22.225	0	0.018
L	3.7402			95
J	2.7559			70
A2	0.6299			16
A1	0.5512			14
A	1.063			27
N	0.4724			12
E	1.4094			35.8
S	0.563			14.3
DATE	DRAWN BY	APPROVED BY		APPROVED BY
06/13/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. TRITAN104277-012

NOTES
Basic Dynamic Load Rating Cr: 3147.33 Lbf (14 kN)
Basic Static Load Rating Cor: 1764.75 Lbf (7.85 kN)
Radial Internal Clearance - (C3): 0.0005 to 0.0011 inch (0.012 to 0.028 mm)

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	2100 Pacific St Hauppauge, NY 11788 www.tritanpt.com
01	Insert UC205-14	1	AISI 52100	58-62 HRc
02	Housing F205	1	Cast Iron
03	Set Screws 1/4-28 UNF	2	AISI 1045
04	Grease Fitting 1/4-28 UNF	1	AISI 1045
						Part Number UCF205-14
